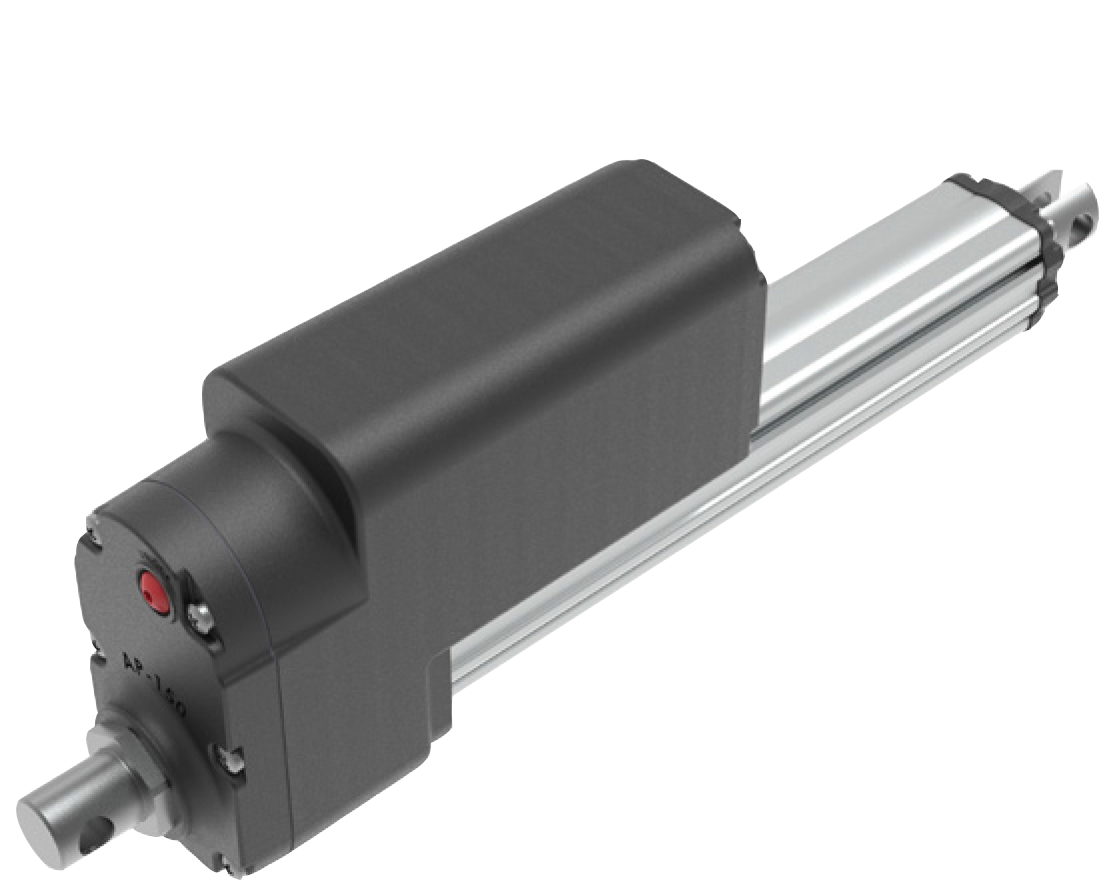

Powerful Harsh Environment Linear Actuator

The XXL-Line right angle linear actuator from SIR isdesigned for harsh conditions, demanding industrial and agricultural applications, where a rugged and robust construction is required. Standard enclosure rating is IP65 and a rated force upto 15,000N. All metal parts have galvanic protection, with the push rod supplied in stainless steel as standard. Available with customisable stroke and retraction lengths, front and rear fixing options, encoder feedback. Options also include integrated CANBus, anodised housing, variety of feedback devices, integrated controller, electrical overload protection, and manual/emergency activation.

  • Suited For Harsh Environments
  • Rugged & Robust Design
  • DC Motor
  • Customisable Stroke & Retraction Length
  • Integrated CANBus (option)
  • Integrated Controller (option)
  • Manual/Emergency Activation (option)

Linked Products
Rated ForceUpto 15000N
Rated SpeedUpto 86mm/s
Duty CycleS3 10% (based on 10mins)
IP RatingIP65
Standard Stroke50 - 1000mm
Motor Supply12VDC
MaterialMetal body with stainless steel push rod
Operating Temperature-20ºC to +60ºC
CatalogueXXL-Line DatasheetPDF 484MB
Accessories DatasheetPDF 3.2KB
SIR Main CataloguePDF 9.3MB
CertificationsISO 9001 CertificatePDF 1.4MB
