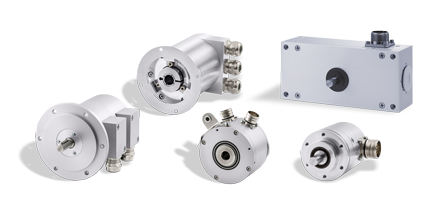

heavy duty encoders

robust housing, high ip rating, suitable for harsh environments, corrosive resistant, incremental or absolute, redundancy, integrated fieldbus interface

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

XAC80/XAC81

Heavy Duty Absolute Encoder With Integrated Fieldbus

Single Turn and Multi-Turn Heavy Duty Absolute encoder, with integrated fieldbus interface. For use in demanding applications, constructed from a corrosive resistant 6082 aluminium alloy body, and stainless steel output shaft. ATEX certified, Cat 3 Zones 2 & 22

  • Integrated Fieldbus Interface
  • 77mm Body Diameter
  • ATEX Cat 3, Zones 2 / 22
  • Optical Sensing
  • 18Bit Resolution, 14Bit Turns
  • 14mm Diameter Blind Hollow Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter77mm
Maximum Absolute Turns14 Bit
Maximum Resolution18 Bit
Fieldbus InterfaceProfibus DP
CANopen
DeviceNet
Profinet
EtherCAT
Modbus/TCP
Powerlink
Ethernet/IP
Supply Voltage10 - 30VDC
Shaft DesignBlind Hollow Bore
Shaft Diameter14mm
Electrical ConnectionM12 Connectors
Operating Temperature-25oC - +85oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP65
OptionsStainless Steel Housing
CatalogueXAC80/XAC81 DatasheetPDF 239KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualXAC80/XAC81 DeviceNet Installation ManualPDF 1.6MB
.
XAC80/XAC81 Profibus Installation ManualPDF 4.9MB
.
XAC80/XAC81 Profibus User GuidePDF 970KB
.
XAC80/XAC81 CANopen Installation ManualPDF 980KB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
