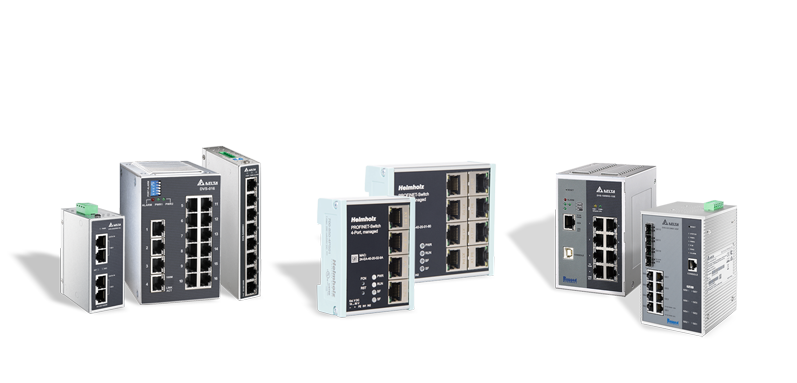

industrial ethernet

Managed & Unmanaged Routers, Poe, gigabit, fast ethernet, profinet, Rugged design, Wide temperature range, din-rail mounting

Founded in 1971 in Taiwan, Delta first began manufacturing switch mode power suppliers. Today the company has become a leading global manufacturer in the field of industrial automation, power electronics and energy management. Since the launch of its first Electrical Drives products in 1995, Delta now offers a complete range of automation products. Dedication to quality, reliability and ongoing investment in R&D, has resulted in Delta becoming renowned as an innovative leader in the industrial automation field. With 54 worldwide research facilities located in Taiwan, China, Thailand, Japan, USA and Europe, Delta employ 7500 R&D engineers and hold over 4900 registered patents.

unmanaged switches

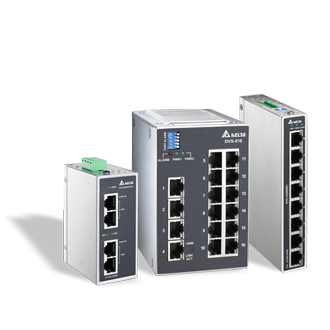

Industrial Ethernet Unmanaged Switches

The Delta range of Ethernet Unmanaged Switches offers the ideal solution to any Industrial Ethernet requirement. The range includes PoE Ethernet, Gigabit Ethernet and Fast Ethernet. Supporting IEEE802.3x full/half-duplex and auto-MDI/MDI-X. Features include rugged housing, wide DC power range, wide operating temperature range, DIP switches for built-in Alarm relay function. The range supports various industrial protocols such as Ethernet/IP, Profinet, CC-LINK and DNP3.0

PoE, Gigabit & Fast Ethernet
Rugged Design
Wide Temperature Range
Supports Various Industrial Protocols
Intuitive Web GUI

Technical

Downloads

Linked Products

Enquiries

Ethernet Ports	1
	2
	5
	6
	8
	16
Types	PoE Ethernet
	Gigabit Ethernet
	Fast Ethernet
Interface Type	RJ45
Interface Type	Fibre Optic Port
Digital Inputs	Yes
Digital Outputs	Yes
Auto Warning	Broadcast Storm Protection
Auto Warning	Digital Relay Output
Power Supply	12 - 48VDC
Redundant Power	Yes
Protection Rating Button	IP40
Operating Temperature	-40 to +75^oC

Catalogue	Delta Industrial Ethernet Overview Brochure	PDF 23.0MB	.
Catalogue	Delta Industrial Automation Brochure	PDF 14.4MB	.
Manual	Delta DVS Unmanaged Ethernet Switch Manual	PDF 2.0MB	.
Manual	Delta Ethernet Switch Installation Guides		https://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060308&typeID=1&downloadID=DVS&title=DVS&dataType=1;8;3;9;5;&check=1&hl=en-US
Software	IEXplorer	ZIP 58MB	https://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060308&typeID=1&downloadID=DVS&title=DVS&dataType=1;8;3;9;5;&check=1&hl=en-US
Dimensions	2D and 3D CAD Files		https://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060308&typeID=1&downloadID=DVS&title=DVS&dataType=1;8;3;9;5;&check=1&hl=en-US

Managed Switches

Din Rail, Rack Mount
PoE, Redundant
Intuitive Web GUI
Wide Temperature Range

IIOT Routers

Rugged Design
10/100Mbps
2x Sim, 1x SD
Wide Temperature Range

DC Power Supplies

Up To 960W
Wide Voltage Range
Compact Design
Protective Functions

Visualisation

Touch Panels
Panel PCs
4.3" Up To 15.6"
Robust Design

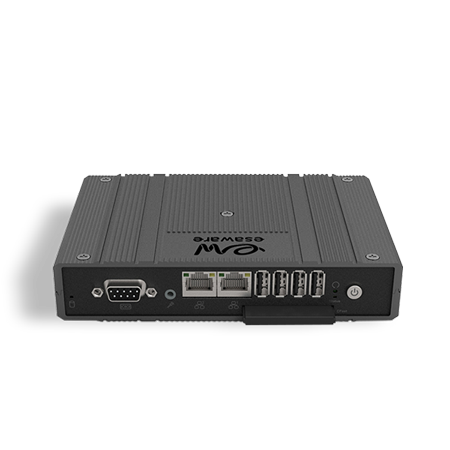

Box IPCs

Rugged Design
Slim, Fanless
Various Processors
Wide Temperature Range
