Distributed Fieldbus IO System

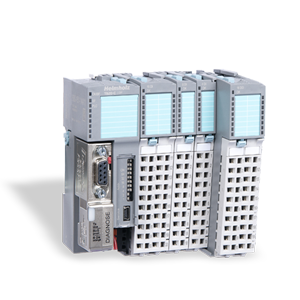

The TB20 distributed fieldbus IO is a compact and scaleable IO system which is suitable for use in a variety of applications. The three component construction consists of a removable front connector, electronic module and base module. A unique locking mechanism ensures that the modules can be quickly and easily installed, while giving a very secure electrical connection. The "Hot-Swapping" feature allows modules to be changed while the system remains powered. Real-Time Bus diagnostic LEDs and customisable labels ensure that I/O status is clear to see.

  • Compact Dimensions
  • Real-Time Bus Diagnostic LEDs
  • Wide Range of Fieldbus Options
  • Supports up to 63 Peripheral Modules

Linked Products
Supply Voltage24VDC
Integrated Peripheral Power Supply2.5A
Configuration PortUSB
Maximum Peripheral Modules63
Maximum I/O DataUp To 1024 Bytes
Automatic IO MappingYes
Hot SwappableYes
Diagnostic LEDs7
Master Reset SwitchYes
Fieldbus OptionsProfinet
CatalogueTB20 Product Overview FlierPDF 8.6MB
EtherCAT Coupler DatasheetPDF 3.1MB
Ethernet/IP Coupler DatasheetPDF 3.2MB
Profinet Coupler DatasheetPDF 3.1MB
Profibus/DP Coupler DatasheetPDF 3.0MB
CANopen Coupler DatasheetPDF 3.7MB
Modbus-TCP Coupler DatasheetPDF 3.0MB
DeviceNet Coupler DatasheetPDF 3.1MB
Peripheral Module DatasheetsVarious
Toolbox FlierPDF 609KB
Helmholz Product Summary BrochurePDF 3.2MB
ManualEtherCAT Coupler ManualPDF 8.4MB
Ethernet/IP Coupler ManualPDF 9.4MB
Profinet Coupler ManualPDF 5.4MB
Profibus/DP Coupler ManualPDF 9.8MB
CANopen Coupler ManualPDF 6.0MB
Modbus-TCP Coupler ManualPDF 3.6MB
DeviceNet Coupler ManualPDF 8.6MB
Peripheral Module ManualsVarious
SoftwareHelmholz Software Tools & DriversVarious
