Standard helical Gearboxes

modular design, wide range of ratios and sizes, aluminium or cast iron, high efficiency, low noise, long life, customised designs

Founded in 1980, Varmec designs and produces inline helical gearboxes, shafted mounted gearboxes, mechanical variable speed drives and variable pulley systems for industrial power transmission applications. Varmec has developed strong expertise, high quality standards, together with on time deliveries. Since the year 2000, Varmec has been part of the Tramec Group and due to this partnership, the company has become a complete and versatile supplier in the field of mechanical transmission. A fundamental feature of Varmec products is the detailed process of design and manufacturing, coupled with quality materials. Highly efficient production methods and immediate availability of stocked components, result in fast deliveries through their automated logistics control system. Varmec, through an extensive and specialised distribution network, is able to offer world class service and prompt delivery worldwide. Varmec products can be provided with certification suitable for use in potentially explosive atmospheres, in compliance with European Directive ATEX 2014/34/EU.

helical Gearboxes

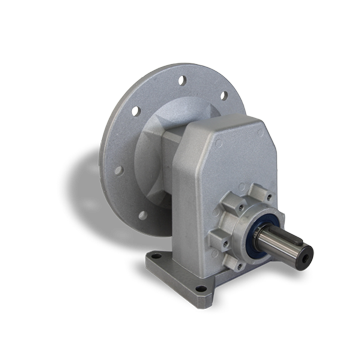

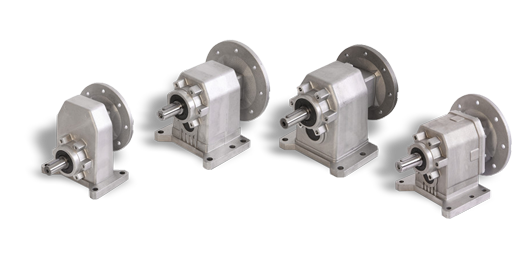

Standard Helical Gearboxes and Geared Motors

Varmec offers a wide range of inline helical gearboxes designed for general purpose industrial applications. Offered with one, two or three stages, and available in twelve different gearbox sizes, the range is designed in a modular format. The gearbox case uses either Aluminium or Cast Iron, and offers compactness, high efficiency, low noise and long life. These gearboxes can be supplied as a complete geared motor or with a motor input flange. Other options include output flange, mounting feet and a variety of shaft dimensions. Explosion proof ratings are also available on request.

  • Modular Design
  • Wide Selection Of Ratios
  • High Efficieny
  • Supplied as Gearbox or Geared Motor

Linked Products
Gearbox Rated Torque15Nm - 3000Nm
Gearbox Rated Power90W - 54kW
Gearbox Ratio1.2:1 - 317:1
Gearbox Size14 - 60
MountingFlange or Feet
Body MaterialDie Cast Aluminium or Cast Iron


Harsh Environment Oil Seals
Food Grade Oil
Customised Output Shaft
ATEX Rating
Output Flange
Mounting Feet
Paint Finish
Oil Fixings
CatalogueVarmec Inline Gearbox CataloguePDF 8.9MB
ManualVarmec User ManualPDF 4.8MB
DimensionsCAD Drawings
ConfiguratorOnline Configurator
