SHADED POLE geared motors

230VAC, 115VAC, SPur Gearboxes, wide range of ratios, long life, Brake & Fan Options

Since its establishment in 1979, GGM has been designing and manufacturing AC and DC small geared motors. Based on a determination to manufacture the world's best geared motors, GGM has grown steadily into a strong enterprise that has an important presence on the global stage. The company has been recognized for its success in supplying geared motors with low noise, high efficiency, high strength, long life and price competitiveness, both domestically and globally. This has been due to its continuous technical developments and sound investments. Represented in 50 countries around the world, GGM is renowned for developing and supplying high quality products that meet the needs of the market. Through their affiliation with Korean research institutes, ongoing development of new products and technologies, this has ensured accumulated expertise in the production of small geared motors, and using the state-of-art production equipment.

shaded pole

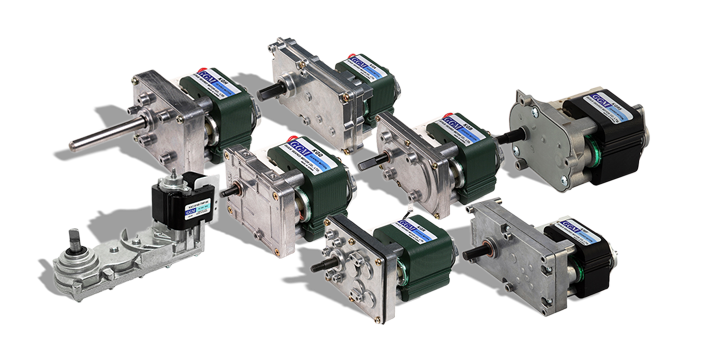

Shaded Pole Motors and Geared Motor

GGM offers a range of shaded pole motors and geared motors, designed for low cost, less demanding applications, particulary where low starting torque is required. These induction motors can be offered to suit either 230VAC or 115VAC and can be supplied with a range of in-line spur gearboxes. Other options include brakes and fans.

  • 230VAC or 115VAC
  • Low Cost Solution
  • Available With In-Line Spur Gearboxes
  • Wide Selection Of Ratios
  • Brake And Fan Options

* Minimum order quantity applies - please enquire for details

Technical
Downloads
Linked Products
Motor Rated Power2.5W - 9.1W
Motor Rated Speed2400RPM
Gearbox Rated Output Torque0.06Nm - 4.9Nm
Gearbox Ratio10:1 - 3140:1
Motor Voltage110VAC / 220VAC
Rated Frequency50 - 60Hz
Enclosure RatingIP00
CatalogueMiniature DC & Shaded Pole Geared Motor CataloguePDF 16.7 MB
.
DimensionsShaded Pole Motors & Geared Motor CAD Drawingshttp://www.ggm.co.kr/pages/wprod.en.php?scate=002007
CertificatesCertificate of Conformity
.
