touch panels

Web panels & HMIs, android, linux, windows embedded, cloud integration, ip65, IP69K, stainless steel, wide temperature range

ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

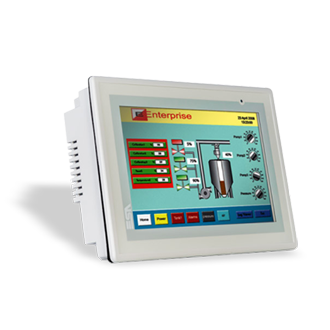

SC100 / SC200

Entry Level HMIs

The SC series offers an entry level HMI solution, available in either 7" or 10.1", with an ABS plastic housing. Offering wide screen, white LED back lighting and true-flat design. All models are equipped with an Ethernet port and a dual RS232/485 serial port. Programming is done via ESA's Smartclick software tool.

  • 7" & 10.1" Widescreen TFT
  • High Brightness / 65K Colours
  • IP65 ABS housing
  • Wide Temperature Range

Technical
Downloads
Linked Products
Display Size7"
10.1"
Display TypeTFT
Display Colours65K
Display BacklightLED
Display Resolution800 x 480 (7")
1024 x 600 (10.1")
ProcessorARM
RAM32MB - 64MB
Flash64MB
Serial PortsSP1 RS232/485/MPI/COM0
SP2 RS232/485/COM0
Ethernet Ports1x 10/100MB
USB Ports1x USB Host, 1x USB Device
Card Slot1x SD/MMC
Power Supply12 - 32VDC
Protection Rating ButtonIP65
Operating Temperature-10 to +50oC
CatalogueESA SC100/SC200 DatasheetPDF 212KB
.
ESA Product Overview BrochurePDF 9.9MB
.
ManualESA SC107/SC207 Installation GuidePDF 280KB
.
ESA SC110/SC210 Installation GuidePDF 280KB
.
ESA External Power Supply GuidePDF 179KB
.
SoftwareESA Software & Communication ToolsVarioushttps://www.esa-automation.com/en/category-downloads/?name=SC&refid=2238
DimensionsESA 2D and 3D CAD DrawingsVarioushttps://www.esa-automation.com/en/category-downloads/?name=SC&refid=2238
CertificationESA EC Declaration Of ConformityPDF 166KB
.
