fieldbus connectors

Profinet, profibus, canbus, metalised, robust design, wide range, integrated termination resistor, simple assembly

Helmholz produces a comprehensive range of automation components ranging from decentralised I/O systems, switches and repeaters, gateways and firewalls, to integrated remote maintenance solutions. Founded in 1988, the business has been at the forefront of developing user friendly and innovative automation components. Initially established as an engineering company for software and plant commissioning, two years later the first Siemens S5 products were launched. Today employing 85 people the company serves its worldwide customers through a network of sales offices and distributors. Assembly and inspection takes place at the company headquarters in Großenseebach, Germany. High standards of quality and performance, in accordance to ISO 9001:2015, have provided the foundation for Helmhoz success over the past 30 years.

profinet connectors

ProfiNet, Modbus & EtherCAT RJ45 Connectors

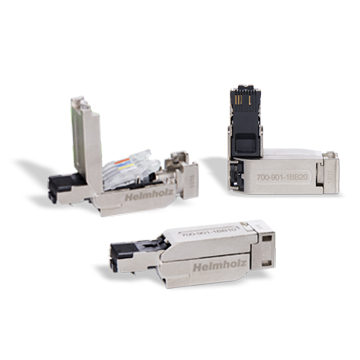

The industrial grade metal housing provides a rugged solution suitable for use in a wide range of industrial applications. Simple and fast assembly is acheived due the fast connection technology EasyConnect®. Either solid single wires or stranded wires can be used. The colour coded contact elements help avoid connection errors. Using cable lengths of up to 100m, Ethernet based components such as PROFINET devices can be connected on the network with transmission speeds up to 100Mbps. These RJ45 connectors have a protection class of IP20.

  • Robust Metal Housing
  • Up To 100Mbps
  • ProfiNet, Modbus & EtherCAT
  • Colour Coded Elements
  • EasyConnect Technology
  • 90o, 145o or 180o

Linked Products
Physical LayerEthernet
Transmission Speed100Mbps
Connector TypeRJ45
Connector Orientation45o
Cable TypeProfiNet
Cable Size4x 24 AWG
4x 22 AWG
Cable Max Outer Diameter6.7mm
Protection RatingIP20
Operating Temperature-30oC to +70oC
Catalogue90o ProfiNet Connector DatasheetPDF 1.5MB
145o ProfiNet Connector DatasheetPDF 3.5MB
180o ProfiNet Connector DatasheetPDF 1.2MB
Helmholz ProfiNet Product Overview FlierPDF 4.9MB
Helmholz Product Summary BrochurePDF 3.2MB
Manual90o ProfiNet Connector Assembly InstructionsPDF 949KB
180o ProfiNet Connector Assembly InstructionsPDF 896KB

Technical Information

Product technical details and product downloads

Click Here
