Frequency Inverters

With modern power electronics and advanced microprocessor technology

Founded in 1971 in Taiwan, Delta first began manufacturing switch mode power suppliers. Today the company has become a leading global manufacturer in the field of industrial automation, power electronics and energy management. Since the launch of its first Electrical Drives products in 1995, Delta now offers a complete range of automation products. Dedication to quality, reliability and ongoing investment in R&D, has resulted in Delta becoming renowned as an innovative leader in the industrial automation field. With 54 worldwide research facilities located in Taiwan, China, Thailand, Japan, USA and Europe, Delta employ 7500 R&D engineers and hold over 4900 registered patents.

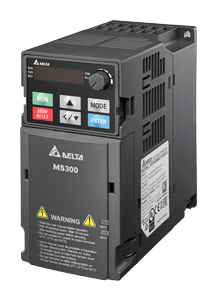

MS300

Frequency Inverter

Delta Electronics latest addition to their frequency inverter range, the new generationMS300 Vector drive supports Induction and Permanent Magnet motors, STO function, built in PLC, size reduction due to its compact design, multi-motor control, supports wide range of fieldbus networks, and offers multiple protective functions

  • New Generation
  • 0.2kW to 22kW
  • 1ph/115V, 1ph 230V, 3ph/460V
  • Sensorless Vector Control
  • STO Safety
  • Built-In PLC

Technical
Downloads
Linked Products
Power Range0.2kW - 22kW
Supply1ph/230VAC
1ph/115VAC
3ph/460VAC
Switching LogicNPN / PNP
EMC FilterIntegrated
PLCIntegrated
KeypadDetachable
Output Frequency1 - 600Hz (2000Hz High Speed Model)
Fieldbus OptionsModbus
Profibus DP
DeviceNet
Modbus TCP
EtherNet IP
CANopen
EtherCAT (planned)
Control TypeV/F
Sensorless Vector
Application Groups
CatalogueDelta MS300 Compact Drive CataloguePDF 8.8MB
.
Delta Overview Drives CataloguePDF 2.6MB
.
Technical ManualDelta MS300 User ManualPDF 18.0MB
.
Delta MS300 User Manual (High Speed Version)PDF 16.7KB
.
EMC Standard Installation GuidePDF 469KB
.
SoftwareDelta VFDSoft V1.58ZIP 33.7MB
.
Delta VFDSoft ManualZIP 6.0MB
.
DimensionsDelta MS300 2D & 3D DrawingsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060101&typeID=1&downloadID=MS300&title=MS300&dataType=9;&check=1&hl=en-US
CertificationsCE CertificatePDF 3.0MB
.
UL Certificate (Frame A-C)PDF 178KB
.
UL Certificate (Frame D-F)PDF 178KB
.
TUV CertificatePDF 614KB
.
