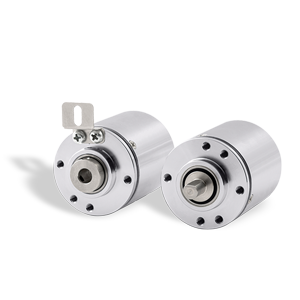

MM36/MMC36

Compact Robust Absolute Encoder

Robust, multi-turn, absolute encoder with 36mm body diameter, with solid or blind hollow shaft. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with stainless steel shaft. Uses magnetic sensing, offering a maximum resolution of up to 13 Bit.

  • 36mm Body Diameter
  • Magnetic Sensing
  • Max Resolution 13 Bit
  • Multi-Turn
  • 6mm Max Diameter Shaft or Blind Bore

Technical
Downloads
Linked Products
Sensing MethodMagnetic
Body Diameter36mm
Maximum Absolute Turns65,536
Maximum Resolution13 Bit
Output CircuitBinary, SSI
Gray, SSI
Supply Voltage10 - 30VDC
Shaft DesignSolid Shaft
Blind Hollow Bore
Max Shaft Diameter6mm
Electrical ConnectionCable
Operating Temperature-20oC - +85oC
Maximum Rotational Speed12000rpm
Maximum Enclosure RatingIP67
OptionsCable Length
Cable Position
Cable Plus M12 Connector
IP Rating
CatalogueMM36/MMC36 DatasheetPDF 189KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualMM36/MMC36 Installation ManualPDF 780KB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
