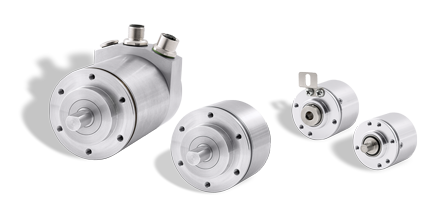

stainless steel encoders

stainless steel housing & shaft, corrosive resistant, incremental or absolute, high resolution, fieldbus interface options, high IP Rating

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

MI36K/MC36K

Compact Incremental Encoder

Compact incremental encoder with 36mm body diameter. Constructed from a stainless steel AISI 303 body, flange and output shaft. High IP rating with corrosive resistant surface, ideal for food industry or harsh environments. Uses magnetic sensing offering a maximum resolution of up to 2048ppr.

  • 36mm Body Diameter
  • Magnetic Sensing
  • Max Resolution 2048ppr
  • Wide Range of Resolutions
  • 6mm Max Diameter Solid or Hollow Shaft

Technical
Downloads
Linked Products
Sensing MethodMagnetic
Housing Diameter36mm
Maximum Resolution2048ppr
Output CircuitNPN
Push-Pull
Line Driver
Supply Voltage5VDC
10 - 30VDC
Shaft DesignSolid
Hollow Bore (Blind)
Max Shaft Diameter6mm
Electrical ConnectionCable
Operating Temperature-25oC - +85oC
Maximum Rotational Speed12000RPM
Maximum Enclosure RatingIP67
OptionsCable Length
Cable Position
IP Rating
CatalogueMI36K/MC36K DatasheetPDF 103KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualMI36K/MC36K Installation ManualPDF 423KB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
