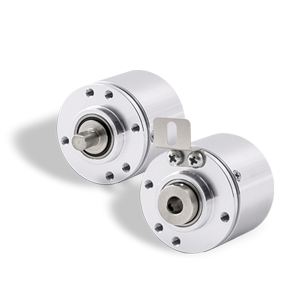

MI36/MC36

Compact Incremental Encoder

Compact incremental encoder with 36mm body diameter. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with a stainless steel shaft. Uses magnetic sensing offering a maximum resolution of up to 2048ppr.

  • 36mm Body Diameter
  • Magnetic Sensing
  • Max Resolution 2048ppr
  • Wide Range of Resolutions
  • 6mm Max Diameter Solid or Hollow Shaft

Technical
Downloads
Linked Products
Sensing MethodMagnetic
Housing Diameter36mm
Maximum Resolution2048ppr
Output CircuitNPN
Push-Pull
Line Driver
Supply Voltage5VDC
10 - 30VDC
Shaft DesignSolid
Hollow Bore (Blind)
Max Shaft Diameter6mm
Electrical ConnectionCable
Operating Temperature-25oC - +85oC
Maximum Rotational Speed12000RPM
Maximum Enclosure RatingIP67
OptionsCable Length
Cable Position
IP Rating
CatalogueMI36/MC36 DatasheetPDF 243KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualMI36/MC36 Installation ManualPDF 670KB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
