Profinet switches

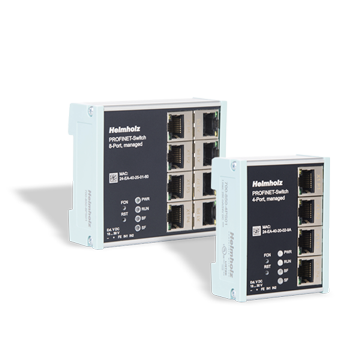

Industrial Managed Profinet Switches

PROFINET switches are used to prioritise PROFINET frame traffic in a machine network. These managed switches can differentiate whether the frame is a web query, FTP file transmission, media stream, or a PROFINET frame. In the case of a high transmission load, the important frames can be prioritised in order to prevent frame losses. Supported PROFINET protocols include as LLPD, DCP & SNMP. Diagnostic alarms can be easily configured and administered.

  • ProfiNet Conformance Class B
  • Quick & Simple Configuration
  • Media Redundancy, MRP Client
  • Port Mirroring
  • Managed Switch, RJ45 Ports, 100Mbps

Technical
Downloads
Linked Products
ProfiNet Ports4
8
16
Physical layerEthernet
FeaturesMedia Redundancy Protocol
Automatic Addressing
Status LEDs4x LEDs - Function Status
8x LEDs - Ethernet Status
Power Supply12 - 30VDC
Protection Rating ButtonIP20
Operating Temperature-40 to +75oC
Catalogue4x Port ProfiNet Switch DatasheetPDF 1.7MB
.
8x Port ProfiNet Switch DatasheetPDF 2.0MB
.
16x Port ProfiNet Switch DatasheetPDF 1.0MB
.
ProfiNet Switch FlierPDF 2.9MB
.
ProfiNet Product Overview FlierPDF 4.9MB
.
Helmholz Product Summary BrochurePDF 3.2MB
.
ManualProfiNet Switch Quick Start GuidePDF 6.0MB
.
SoftwareSoftware, Drivers & Firmwarehttps://www.helmholz.de/en/download/
Dimensions3D CAD Fileshttps://www.helmholz.de/en/download/
