magnetic sensors

incremental or absolute, high repeat accuracy, linear or rotary measurement, compact design, wide range of outputs

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

magnetic sensors

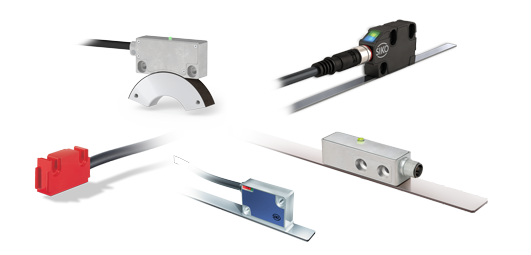

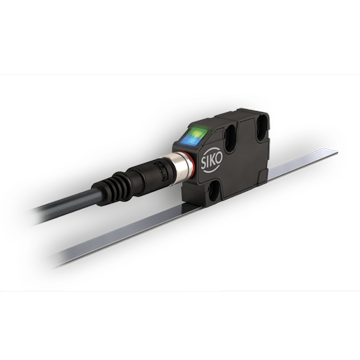

Magnetic Sensors For Linear Or Rotary Measurement

Siko's range of magnetic sensors, for accurate measurement of either linear or rotary position, offer a compact and robust design. As these magnetic sensors are contactless, there are no wearing parts and are also insensitive to dust, water and non-ferrous debris. Installation is simple, and the range are suitable for harsh environments. The range includes both incremental and absolute, passive or active versions, with a wide variety of output signals.

  • Incremental Or Absolute
  • Passive Or Active
  • Wide Range Of Output Signals
  • Contactless - No Wearing Parts
  • Suitable For Harsh Environments
  • Compact And Robust

Technical
Downloads
Linked Products
Resolution1mm - 0.1µm
Repeat Accuracy±1mm - ±1µm
Reading Distance20mm - 0.1mm
Maximum Measurement LengthInfinite
Product ClassificationMicro
Basic
Macro
Roto
Measurement MethodIncremental
Quasi-Absolute
True Absolute
Housing MaterialPlastic
Die-Cast Zinc
Die-Cast Aluminium
Output SignalLine Driver
Push-Pull
TTL
1 Vss
SSI
RS485
RS232
BiSS C
IO-Link
DRIVE-CliQ
OptionsCable Connector
Cable Length
Extension Cable
Output Signal Type
Resolution
Voltage
Status LEDs

Medical and Laboratory Flyer

CataloguesLEC100 DatasheetPDF 258KB
.
LEC160 DatasheetPDF 330KB
.
LEC200 DatasheetPDF 260KB
.
MS500 DatasheetPDF 289KB
.
MS500H-ML DatasheetPDF 318KB
.
MSA111C DatasheetPDF 373KB
.
MSA213C DatasheetPDF 445KB
.
MSA213K DatasheetPDF 711KB
.
MSA501 DatasheetPDF 290KB
.
MSAC501 DatasheetPDF 256KB
.
MSAC506 DatasheetPDF 278KB
.
MSC500 DatasheetPDF 391KB
.
KV1C DatasheetPDF 284KB
.
MSK210 DatasheetPDF 308KB
.
MSK320 DatasheetPDF 437KB
.
MSK320R DatasheetPDF 278KB
.
MSK1000 DatasheetPDF 462KB
.
MSK2000 DatasheetPDF 294KB
.
MSK4000 DatasheetPDF 322KB
.
Product Overview BrochurePDF 308MB
.
Medical & Laboratory FlyerPDF 592KB
.
ManualsFor all Manuals, User Guides, Installations Instructionshttps://www.siko-global.com/en-de/products/magline-magnetic-linear-and-angular-measurement/magnetic-sensors
Dimensions2D & 3D Configuratorhttps://siko-embedded.partcommunity.com/3d-cad-models/sso/magnetic-sensors-siko?info=siko%2Fmagline%2Fmagnetische_sensoren
CertificatesISO 9001 Quality CertificatePDF 680KB
.
RoHS/Reach/WEEE DeclarationPDF 239KB
.
MSK-LE-LS EU Conformity DeclarationPDF 110KB
.
MSA111C DriveCliq CertificatePDF 266KB
.
MSA111C DriveCliq SIL2 CertificatePDF 614KB
.
MSA111C DriveCliq (With External Temperature Sensor) CertificatePDF 258KB
.
