ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

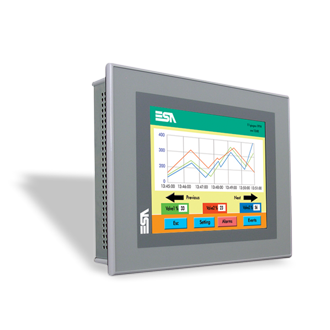

IT100

Industrial HMIs

The IT family offers a range of HMIs from 4.3" to 15", with either 32 tones of grey or 65K colours. Mounting can be done either horizontally or vertically, and high brightness is assured due a strong backlight and white LED technology. The touchscreen provide IP66 protection. The 15" HMI offers a front IP66 USB port for connecting peripheral devices for easy data import/export. Stainless steel housing is available for sizes 7" and 12". ATEX and IP69K approvals available.

  • 4.3" to 15" TFT
  • 32 Tones of Greey or 65K Colours
  • IP65 or IP69K
  • Stainless Steel 304 Option
  • ATEX certified

Technical
Downloads
Linked Products
Display Size4.3"
5.7"
7"
7.5"
10.4"
12.1"
15"
Display TypeTFT
Display Colours32 Tones Of Grey
65K Colours
Display BacklightLED
Display Resolution480 x 272 (4.3")
320 x 240 (5.7")
800 x 480 (7")
640 x 480 (7.5" and 10.4"))
800 x 600 (12.1")
1024 x 768 (15")
ProcessorIntel PXA270 312MHz
RAM64MB - 128MB
Flash32MB - 64MB
Serial PortsSP1 RS232/485/MPI/COM0
SP2 RS232/485/MPI/COM0/CAN/Profibus/ProfiNet
Ethernet Ports1x 10/100MB
USB Ports1x USB Host, 1x USB Device
Card Slot1x SD/MMC
Power Supply18 - 32VDC
Protection Rating ButtonIP65
Operating Temperature0 to +50oC
CatalogueESA IT100 DatasheetPDF 1.0MB
.
ESA Product Overview BrochurePDF 9.9MB
.
ManualESA Installation GuidesVarioushttps://www.esa-automation.com/en/category-downloads/?name=IT%26nbsp%3BTouch&refid=2237
SoftwareESA Software & Communication ToolsVarioushttps://www.esa-automation.com/en/category-downloads/?name=IT%26nbsp%3BTouch&refid=2237
DimensionsESA 2D and 3D CAD DrawingsVarioushttps://www.esa-automation.com/en/category-downloads/?name=IT%26nbsp%3BTouch&refid=2237
CertificationESA EC Declaration Of ConformityPDF 276KB
.
ESA UL CertificatePDF 160KB
.
ESA ATEX CertificatePDF 105KB
.
