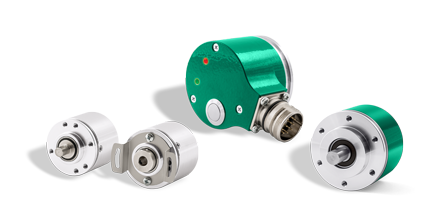

PROGRAMMABLE incremental encoders

high versatility, simple programming, wide range of output circuits, push button for teach function, high iP rating

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

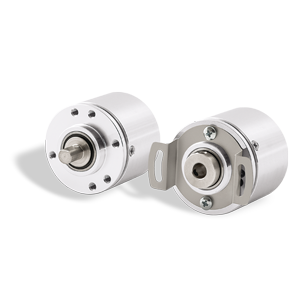

Compact Programmable Incremental Encoder

Fully programmable compact incremental encoder with 36mm body diameter. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with a stainless steel shaft. Uses magnetic sensing offering a maximum resolution of up to 16384ppr.

  • Fully Programmable
  • Body Diameter ∅36mm
  • Max Resolution 16384ppr
  • Magnetic Sensing
  • Max Shaft / Blind Bore ∅6mm

Linked Products
Sensing MethodMagnetic
Housing Diameter36mm
Maximum Resolution16,384ppr
Output CircuitUniversal Output (PP & LD Compatible)
Supply Voltage5 - 30VDC
Shaft DesignSolid
Blind Hollow Bore
Max Shaft Diameter6mm
Electrical ConnectionCable
Cable with M12 Connector
Operating Temperature-40oC - +85oC
Maximum Rotational Speed12000RPM
Maximum Enclosure RatingIP69K
OptionsCable Length
Cable With M12 Connector
IP Rating
CatalogueIQ36/CKQ36 DatasheetPDF 134KB
Lika Product Overview BrochurePDF 6.0MB
Lika Product News FlierPDF 957KB
ManualIQ36/CKQ36 User ManualPDF 2.1MB
IQ36/CKQ36 Installation GuidePDF 828KB
Quick GuidePDF 1.1MB
SoftwareLika Programmable Encoder SoftwareZIP 8.7MB
TutorialHow To Video - Programmable EncodersN/A
CertificatesEU Declaration Of ConformityPDF 789KB
UL Certificate Of CompliancePDF 415KB
RoHs/WEEE Declaration Of ConformityPDF 425KB
Reach Declaration Of ConformityPDF 6.8MB
ISO 9001 Quality CertificatePDF 460KB
