integrated geared motors

Compact design, simple mounting, easy wiring, hollow bore, wide range of control & communication options

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

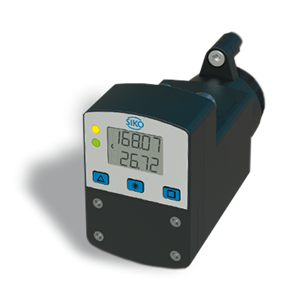

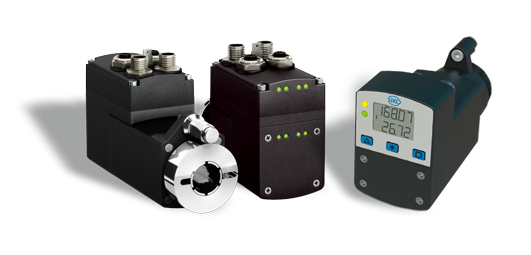

Integrated Geared Motor & Controller Combination

Siko's "Driveline" range of integrated geared motors and controllers have been specifically developed for automatic format adjument, stop positioning, tool alignment and valve control, with the benefit of offering improved changeover times and high setting accuracy. Manual handwheels or locking guides can easily and cost effectively be replaced using this range to integrated geared motors, without the need of going to complex, expensive servo systems. The range is offered with hollow bore for simple mounting, and can be supplied with a variety of communication fieldbus options.

  • Compact Size, High Power Density
  • Simple Mounting
  • Long Lifetime
  • Integrated Fieldbus Options
  • High IP Rating

Linked Products
Rated Output Torque4Nm - 14Nm
Rated Output Speed30RPM - 500RPM
Output Shaft Bore Diameter10mm - 20mm
Supply Voltage24VDC
Enclosure RatingIP50, IP54, IP65
Electrical ConnectionMounted Connectors (M8/M12)


Control Method
Communication Fieldbus
Shaft Diameter/Design
Encoder Type
Extension Cables
