heavy duty encoders

robust housing, high ip rating, suitable for harsh environments, corrosive resistant, incremental or absolute, redundancy, integrated fieldbus interface

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

ICS

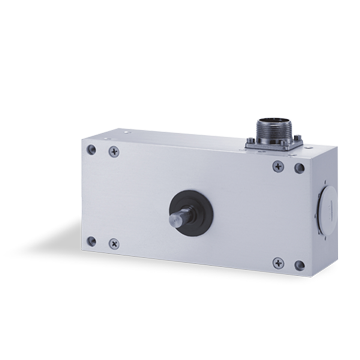

Linear Measurement Incremental Encoder

Robust Heavy Duty Incremental encoder designed for linear measurement ideal for rack and pinion or metric wheel systems. With corrosive resistant aluminium housing, for use in demanding applications. Spring loaded shaft for absorbing mounting misalignment.

  • Ideal For Linear Measurement
  • Corrosive Resistant Body
  • Optical Sensing
  • Max Resolution 2500ppr
  • 16mm Diameter Solid Output Shaft

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Size53mm x 172mm x 80mm
Maximum Resolution2500ppr
Output CircuitNPN
PNP
Push-Pull
Liner Driver
Universal Circuit
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignSolid Output Shaft
Shaft Diameter12mm
Electrical ConnectionMIL Connector
Operating Temperature-25oC - +85oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP67
OptionsShaft Position
Connector Position
Absolute Measurement
CatalogueICS DatasheetPDF 286KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.

Technical Information

Product technical details and product downloads

Click Here
