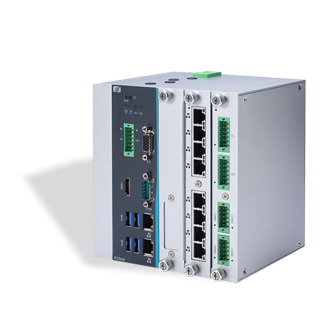

ico500-518

DIN-Rail Embedded Box IPC

The ICO500-518 Fanless Embedded System utilises 7th generation Intel Core i7, i5, i3 or Celeron Processors. Offering dual modular i/o expansion, and compact design, this industrial box pc is ideally suited to gateway applications. Other features include wide operating temperature range and wide voltage DC power range.

  • i7, i5, i3 or Celeron
  • 2 Plug-In I/O Module Slot
  • Fanless & Compact Design
  • Very Wide Temperature Range

Technical
Downloads
Linked Products
CPUIntel iCore i7-7600U 2C 2.8GHz
Intel iCore i5-7300U 2C 2.6GHz
Intel iCore i3-7100U 2C 2.4GHz
Intel Celeron 3965U 2.2GHz
ChipsetSoC
RAMUp To 16GB DDR4
Interface1x HDMI
2x Ethernet GBit LAN
4x USB 3.0
1x VGA
1x RS232/422/485 DB9
1x Isolated DIO (4 In / 4 Out)
1x 2.5" Sata Drive Tray
2x PIM Slots
4x Antenna
Storage1x 2.5" SATA HDD
1x CFast Card
Expansion2x Full-Size PCI Express Mini Card Slot
1x External SIM Card Slot
Operating SystemWIN10
Linux
Operating Temperature-40 to +70oC
Power Supply12 - 48VDC
Vibration Rating3G RMS @ 5-500Hz (with SSD)
Protection RatingIP00
MountingDin-Rail (Standard)
Wall Mounting (Optional)
CatalogueICO500-518 DatasheetPDF 439KB
.
Axiomtek Heavy Duty Solutions BrochurePDF 8.2MB
.
Axiomtek Product Overview BrochurePDF 66.0MB
.
Axiomtek Corporate Company ProfilePDF 1.3MB
.
ManualICO500-518 User ManualTBC
ICO500-518 Quick Start GuideTBC
DriversICO500-518 DriversTBC
CertificationICO500-518 Declaration Of ConformityTBC
ICO500-518 EMC CertificateTBC
ICO500-518 LVD CertificateTBC
