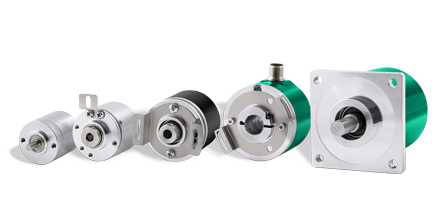

standard incremental encoders

wide range, Compact size, optical or Magnetic sensing, solid shaft or hollow bore, high resolution, wide temperature range, high maximum rotational speed, high ip rating

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

I40/I41

Compact Multi-Purpose Incremental Encoder

Compact versatile incremental encoder with 41mm body diameter. Constructed from a robust fibre glass epoxy resin body, with a stainless steel shaft, offered with either a servo flange or ring nut. Uses optical sensing with a maximum resolution of up to 4096ppr.

  • 41mm Body Diameter
  • Optical Sensing
  • Max Resolution 4096ppr
  • Wide Range of Resolutions
  • 8mm Max Diameter Solid Shaft

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter41mm
Maximum Resolution4096ppr
Output CircuitNPN
PNP
Push-Pull
Line Driver
Universal Circuit
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignSolid
Max Shaft Diameter8mm
Electrical ConnectionCable
Operating Temperature-25oC - +85oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP66
OptionsCable Length
Cable Position
IP Rating
Shaft Diameter
CatalogueI40/I41 DatasheetPDF 339KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualI40/I41 Installation ManualPDF 670KB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
