Hydraulic Cylinder position sensors

compact design, suitable for harsh environments, easy installation, long lifetime

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

cylinder sensors

Hydraulic Cylinder Position Measurement

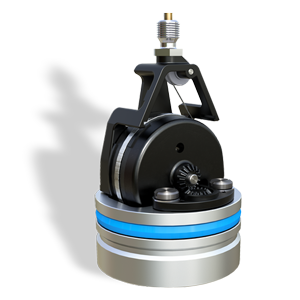

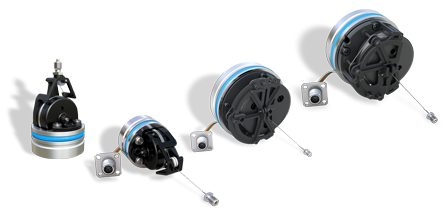

Siko's unique range of Hydraulic Cylinder measurement sensors are fully integrated inside the cylinder body, thanks to their compact and clever design. This means that they can be used in very harsh environments yet still offer maintenance free operation and long life. Additional, the expensive and time consuming drilling of the pistion rod is now no longer necessary, meaning installation is very simple and fast.

  • Extrememely Robust
  • Long Lifetime
  • Maintenance Free Operation
  • High Tolerance to Vibration and Shocks Loads
  • Suitable for Safety Critical applications

Technical
Downloads
Linked Products
Measuring LengthUp To 5m
Housing MaterialAluminium
InterfacesCurrent
Voltage
CANopen
CANopen Safety
SAE J1939
Redundant Analogue
Redundant CANopen
Redundant SAE J1939
Wire MaterialStainless Steel
CataloguesSGH10 DatasheetPDF 1.06MB
SGH25 DatasheetPDF 452KB
SGH50 DatasheetPDF 429KB
SGH10L DatasheetPDF 280KB
KV1H DatasheetPDF 230KB
SVH DatasheetPDF 444KB
ZB4004 Installation Tool DatasheetPDF 228KB
ZB4005 Installation Tool DatasheetPDF 216KB
ZB4008 Installation Tool DatasheetPDF 216KB
ZB4009 Rope Swivel DatasheetPDF 233KB
Protool SGH DatasheetPDF 990KB
Hydraulic Position Sensor FlierPDF 3.8MB
Wire Actuated Encoder Main CataloguePDF 2.6MB
Siko Product Overview BrochurePDF 3.4MB
Industry SectorIndustrial TrucksPDF 3.8MB
Construction CranesPDF 4.8MB
Hydraulic CylindersPDF 3.4MB
Mobile MachinesPDF 1.7MB
ManualsSGH10 Installation InstructionsPDF 3.0MB
SGH10 Quick Start GuidePDF 1.0MB
SGH10 CANopen ManualPDF 1.3MB
SGH25 Installation InstructionsPDF 3.2MB
SGH25 Quick Start GuidePDF 1.2MB
SGH25 CANopen ManualPDF 1.3MB
SGH25 CANopen-Safety ManualPDF 1.8MB
SGH50 Installation InstructionsPDF 3.4MB
SGH50 Quick Start GuidePDF 1.2MB
SGH50 CANopen ManualPDF 1.4MB
SGH50 CANopen-Safety ManualPDF 1.8MB
Protool SGH Quick Start GuidePDF 1.3MB
Protool SGH Installation InstructionsPDF 3.0MB
SoftwareProtool SGHZIP 1.4MB
TutorialHow To Video - Protool SGHN/Ahttps://www.youtube.com/watch?v=wgvXWV4DzrI
Dimensions2D & 3D Configuratorhttps://siko-embedded.partcommunity.com/3d-cad-models/sso/position-sensors-for-hydraulic-cylinders-siko?info=siko%2Flinearline%2Fpositionssensoren_fuer_hydraulikzylinder
CertificatesISO 9001 Quality CertificatePDF 680KB
RoHS/Reach/WEEE DeclarationPDF 239KB
