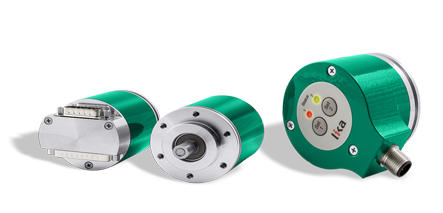

HM58P/HMC58P

High Performance Programmable Multi-Turn Absolute Encoder

Fully programmable absolute encoder with 58mm body diameter. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with a stainless steel shaft. Uses optical sensing offering a maximum resolution of up to 18 Bit, with up to 14 Bit Turns. Offers programmable scaling factor, teach-in function and SSI parameters.

  • Fully Programmable
  • Body Diameter ∅58mm
  • Max Resolution 18 Bit / 14 Bit Turns
  • Magnetic Sensing
  • Max Solid Shaft ∅12mm, or Blind Hollow Bore ∅15mm

Technical
Downloads
Linked Products
Sensing MethodOptical
Housing Diameter58mm
Maximum Resolution18 Bit Resolution / 14 Bit Turns
Output CircuitSSI (RS422)
Bit Parallel Push-Pull
NPN
Supply Voltage10 - 30VDC
Shaft DesignSolid
Blind Hollow Bore
Max Shaft Diameter12mm Solid Shaft
15mm Blind Hollow Bore
Electrical ConnectionCable
M12 Connector
M23 Connector
MIL Connector
DSub Connector
Operating Temperature-40oC - +85oC
Maximum Rotational Speed12000RPM
Maximum Enclosure RatingIP67
OptionsCable Length
Connector Type
Connection Position
Shaft Diameter
CatalogueHM58P/HMC58P DatasheetPDF 310KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualHM58P/HMC58P User ManualZIP 5.4MB
.
HM58P/HMC58P Installation GuideZIP 3.4MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
