BLDC DC SUPPLY

DC powered, compact size, wide speed range, excellent speed holding

Since its establishment in 1979, GGM has been designing and manufacturing AC and DC small geared motors. Based on a determination to manufacture the world's best geared motors, GGM has grown steadily into a strong enterprise that has an important presence on the global stage. The company has been recognized for its success in supplying geared motors with low noise, high efficiency, high strength, long life and price competitiveness, both domestically and globally. This has been due to its continuous technical developments and sound investments. Represented in 50 countries around the world, GGM is renowned for developing and supplying high quality products that meet the needs of the market. Through their affiliation with Korean research institutes, ongoing development of new products and technologies, this has ensured accumulated expertise in the production of small geared motors, and using the state-of-art production equipment.

GUX

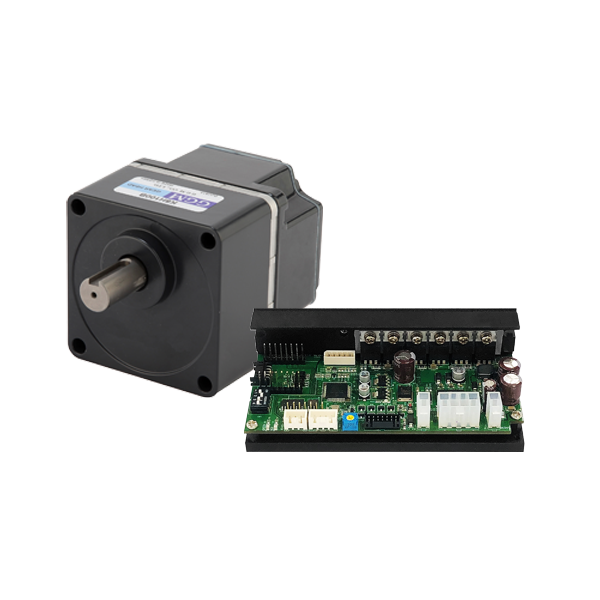

BLDC Geared Motor with Chassis Mount Controller

The GUX package consist of compact BLDC geared motors with simple DC powered chassis mount controller. Installation is quick and easy, with control by means of supplied pre-wired cable assemblies. Speed or Pulse following modes are standard functions. The BLDC motors are fitted with high resolution hall effect sensors giving excellent speed holding over a wide speed range. Options include encoder or brake, for more demanding applications. The motors offer a high efficiency and extremely compact design, ideal where space is of a premium.

  • DC Powered
  • Powers Range 30W - 750W
  • Quick and Easy Installation
  • Excellent Speed Holding
  • Wide Speed Range
  • In-Line or Parallel Hollow Bore Gearboxes

Technical
Downloads
Linked Products
Motor Powers30W, 50W, 100W, 200W, 400W, 750W
Supply24VDC (30W, 50W, 100W, 400W)
48VDC (200W, 400W, 750W)
Gearbox Rated Output TorqueUp To 70Nm
Gearbox Ratio5:1 - 200:1
Motor Max Speed4000rpm
Enclosure RatingIP65
Motor Frame Size60mm, 80mm, 90mm, 104mm2
Motor Electrical ConnectionFlying Lead With Connector
Gearbox TypesIn-Line Helical
Parallel Hollow Bore
OptionsExtension Cables
CatalogueGGM BLDC Geared Motor & Controller Full CataloguePDF 5.3MB
.
GGM BLDC Selection GuidePDF 157KB
.
GUX Datasheet (24V) - 30W, 50W, 100WPDF 645KB
.
GUX Datasheet (24V) - 200WPDF 880KB
.
GUX Datasheet (24V) - 400WPDF 897KB
.
GUX Datasheet (48V) - 400WPDF 880KB
.
GUX Datasheet (48V) - 750WPDF 897KB
.
GUX-B Datasheet (24V) - 30W, 50W, 100WPDF 1.0MB
.
X-Series Motor Datasheet - 30WPDF 879KB
.
X-Series Motor Datasheet - 50WPDF 882KB
.
X-Series Motor Datasheet - 100WPDF 899KB
.
X-Series Motor Datasheet - 200W, 400WPDF 1.1MB
.
X-Series Motor Datasheet - 750WPDF 793KB
.
Operation InstructionsGUX Manual (24) - 30W, 50W, 100WPDF 11.4MB
.
GUX Manual (24) - 200WPDF 4.7MB
.
GUX Manual (24) - 400WPDF 3.3MB
.
GUX Manual (48V) - 400WPDF 4.8MB
.
GUX Manual (48V) - 750WPDF 3.3MB
.
GUX-B Manual (24V) - 30W, 50W, 100WPDF 25.7MB
.
DimensionsGUX Controller DimensionsVarioushttps://www.ggm.co.kr/pages/wprod.en.php?scate=002005002
X-Series Motor DimensionsVarioushttps://www.ggm.co.kr/pages/wprod.en.php?scate=002003009
