spacer shaft couplings

low inertia, dynamic performance, high torsional stiffness, backlash free, long life

Founded in 1967 by Dante Cavalli, under the name OMC, the company originally manufactured mechanical transmission components. In 2010 the company name was changed to ComInTec, to better reflect how the product range has developed over the years. The range now includes power transmission components, torque limiters, safety couplings, backlash free torque limiters, elastic couplings, disc couplings, backlash free couplings, variable speed pulleys, expanding pulleys, shaft collars and clamp collars. These components provide transmission connections, avoid accidental overloads, reduce machine stoppage times, increase productivity, and reduce maintenance and repair costs. Sold globally, the Comintec products are used in a wide variety of application and market sectors, and renowned for quality and reliability.

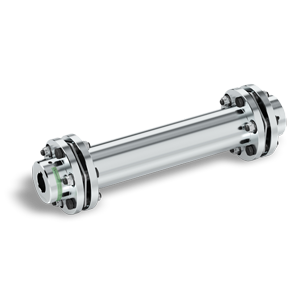

GTR/DBSE

Torsionally Rigid Disc Spacer Coupling

Designed to suit applications with high speed, high power, torsional rigidity and optimum power/weight ratio are important requirements. Composed on three elements: two fully turned steel hubs and a stainless steel disc pack. Offered statically or dynamically balanced to ensure smooth, vibration free rotation.

Torsionally Rigid
High Speed
Stainless Steel Disc Pack
High Power/Weight Ratio
Maintenance Free

Technical

Downloads

Linked Products

Enquiries

Torque Range	Up To 130,000Nm
Bore	Up To 205mm
Body Diameter	78 - 456mm
Speed	Up To 14,500rpm
Torsional Rigidity	High
Statically Balanced	Yes
Corrosion Resistant	On-Request
Misalignment Capability	Low
High Frequency Reversal	Yes
Maintenance Free	Yes

Catalogue	GTR/DBSE Brochure	PDF 708KB	.
	Spacer Shaft Couplings Flier	PDF 3.3MB	.
	Shaft Couplings Catalogue	PDF 4.6MB	.
Technical Manual	GTR Installation Instructions	PDF 489MB	.
Dimensions	2D & 3D Configurator		http://www.tracepartsonline.net/(S(vyfvkjgks0bt5kl3kyfcehp5))/content.aspx?fwsid=COMINTEC&Lang=en&ttl=&st=0
