Motion control

1-64 axes, high speed, linear, circular, helical or spherical interpolation, user friendly basic programming or iec61131-3, motion + pC solution

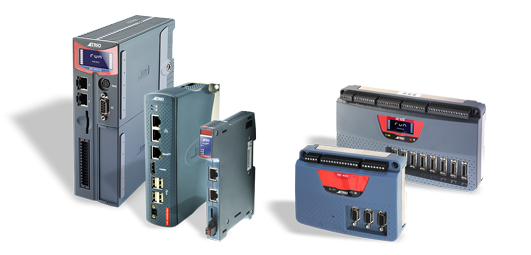

Trio Motion Technology is a specialised designer of high performance motion control technology for automation applications, encompassing the control of moving parts of machines, robots or motors, with high precision. The main components involved typically include a motion controller, drives and motors or actuators. Trio Motion Technology has been manufacturing high-quality motion controllers branded Motion Coordinators since 1987. Their comprehensive range allows economical, flexible and seamless control of 1 to 128 axes of servo motors, stepper motors, piezo motors or hydraulic systems. Trio products can be found in virtually every servo and stepper application.

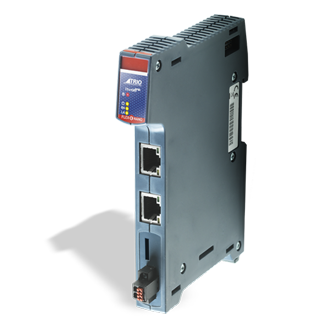

flex-6 nano

Motion Controller

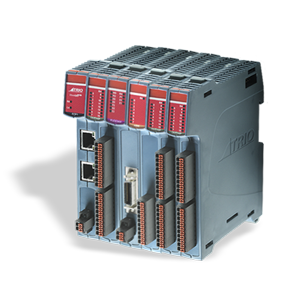

The FLEX-6 NANO is a powerful, compact and flexible motion controller with integrated EtherCAT communications. Offering between from 2 up to 64 axes of motion, the controller can be expanded using the Flexslice range of input, output and axis modules. Using a dual core 1GHz Arm Processor, makes the FLEX-6 NANO ideal for large scale multi-axes applications. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite. Additionally IEC61131-3 programming language is available for softPLC functionality

  • High Performance Motion
  • 2-64 Axes Motion Control
  • Integrated EtherCAT Communications
  • Linear, Circular, Helical & Spherical Interpolation
  • Multi-Tasking BASIC programming
  • IEC61131-3 softPLC

Linked Products
Supply Voltage24VDC
Maximum Axes64x Networked Axes
Maximum Virtual Axes64
ProcessorARM CORTEX-A7
Clock Frequency1000MHz
Position Register Accuracy64 Bit
Real Time ClockYes
Flash Memory32 x 16000 Values
User Memory8 MB
Table Memory512,000 Values
+/- 10V Analogue Outputs0
0 - 10V Analogue Inputs0
Digital Bi-Directional Inputs/Outputs0
Digital Inputs0
Registration Inputs0
CatalogueFLEX-6 NANO DatasheetPDF 7.3MB
Trio Motion Technology Product BrochurePDF 59.7MB
ManualFLEX-6 NAN) Quick Start GuidePDF 1.7KB
Hardware OverviewPDF 1.9MB
EMC Installation GuidePDF 1.1MB
SoftwareTrio Software ToolsVarious
Dimensions2D and 3D CAD DrawingsZIP 25.9MB
