box ipcs

Rugged design, fanless, slimline, high performance, Wide temperature range, din-rail mounting, shock resistant

ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

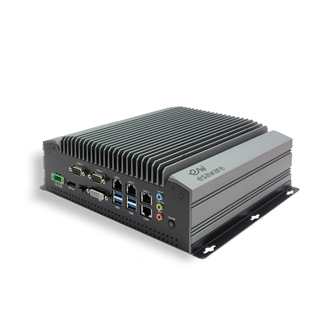

Dynamic Box IPC

The EW420 is a dynamic Box IPC designed for industrial applications. Offering an rugged housing, with highly efficient heat dissipation, the EW420 is ideally suited to applications that require power and wide connectivity. Equipped with Intel Core i3, i5 or i7 processors boasting a powerful performance. Options include Wi-Fi and 3G, high storage capacity and PCIe slots for expansion.

  • Dynamic Performance
  • Robust Structure
  • i3, i5, i7 or Celeron Processors
  • Wide Connectivity

Linked Products
CPUCore i7-6700 Quad Core 2.4GHz Fanless
Core i5-6500TE Quad Core 2.3GHz Fanless
Core i3-6100TE Dual Core 2.4GHz Fanless
Celeron G3900TE Dual Core 2.4GHz Fanless
ChipsetH170 DMI 8GT/s
GPUHD Graphics 530 CPU iCore
HD Graphics 510 CPU Celeron
RAMUp To 32GB DDR4 SODIMM 260 pin 2133MHz
Interface2x RS232/422/485 Sub-D 9 pin
2x RS232 Sub-D 9 pin
4x USB ver 3.0 + 2 USB ver 2.0
4x Ethernet 1GBit RJ45 - Intel 82574L
1x DP port + 1x DVI-I + 1x HDMI
1x Line In-Out / Mic In
3x MiniPCIe slot FS (1x mSATA)
1x Connector GPIO 8Bit 4DI/4DO
Drives1x Or 2x HDD (min 500GB)
SSD (min 32GB)
Operating SystemWIN7
WIN10 IoT Enterprise LTSB 2016
Operating Temperature0 to +50oC
Power Supply9 to 36VDC
Protection RatingIP20
CatalogueESA EW420 DatasheetPDF 263KB
ESA Product Overview BrochurePDF 9.9MB
ManualESA EW420 Installation GuidePDF 361KB
ESA AC Power Supply GuidePDF 179KB
SoftwareESA Software & Communication ToolsVarious
DimensionsESA 2D and 3D CAD DrawingsVarious
CertificationESA EW420 EC Declaration Of ConformityPDF 296KB
