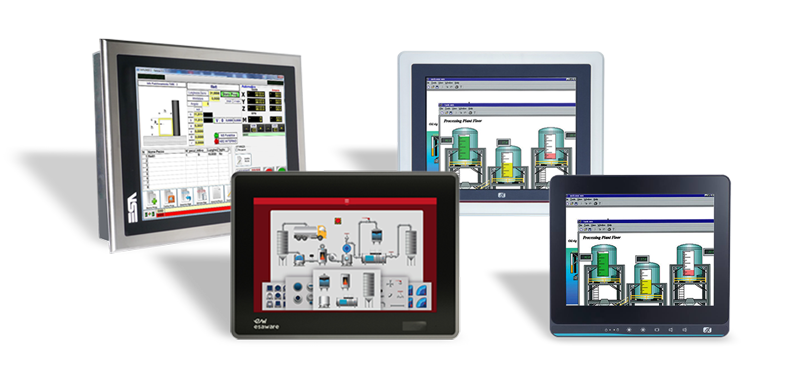

panel pcs

wide range of sizes, processors & options, resistive or capacitive multi-touch, plastic, aluminium or stainless steel, wide temperature range

ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

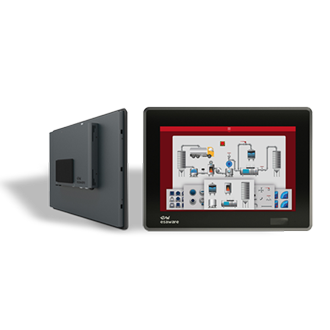

Industrial Panel PC

The EW200 Panel PC range offers the latest technological features such as LCD 16:9 widescreen display with resistive and capacitive touchscreen designs. Sizes vary fro 12.5" up to 21.5". ESA's unique "Twist" design and PTFE non-stick finish prevents dust and dirt accumulation, making it ideal for industrial environments. Offered with either Celeron Quad Core J1900, Intel Core i3-4010U or i7-4650U processors. A comprehensive range of options and configurations allow the final solution to be customised to suit the requirements.

  • Celeron Quad Core, Intel i3, i5 or i7
  • WIN7, WES7, WIN8.1 or WIN10 IoT
  • PTFE Coated Aluminium
  • 12.5" to 21.5" Resistive/Capacitive Touch Screen
  • High Brightness / 16.7M Colours

Linked Products
Display Size12.1"
Display TypeTFT
Display Colours16.7M
Display BacklightLED
Display Brightness400 cd/m2 (12.1" & 15.6")
300 cd/m2 (18.5" & 21.5")
Display Resolution1280 x 800 (12.1")
1366 x 768 (15.6" & 18.5")
1920 x 1080 (21.5")
Touch TechnologyResistive / Capacitive
ProcessorIntel Celeron Quad Core
Intel Core i3
Intel Core i5
Intel Core i7
Operating SystemsWIN7
WIN10 IoT Enterprise LTSB 2016
Serial Ports2x RS232, 1x RS232/422/485
Ethernet Ports2x 1Gb
USB Ports1x USB Front IP66
Up To 4x USB 2.0 / USB 3.0
DrivesHDD min 500Gb
SSD min 32GB
mSATA min 32GB
CFast min 4GB
Expansion Slots2x miniPCIe / 1x PCIe / 1x PCI
Card Slot1xCFast
Power Supply15 - 36VDC
Protection Rating ButtonIP66
Operating Temperature-10 to +50oC
CatalogueESA EW200 "MITX" DatasheetPDF 83KB
ESA EW200 "SLIM" DatasheetPDF 354KB
ESA Product Overview BrochurePDF 9.9MB
ManualESA EW200 Installation GuidePDF 1.3MB
ESA EW200 Front Adhesive Protection SheetPDF 580KB
ESA AC Power Supply GuidePDF 179KB
SoftwareESA Software & Communication ToolsVarious
DimensionsESA 2D and 3D CAD DrawingsVarious
CertificationESA EW200 EC Declaration Of ConformityPDF 430KB
ESA EW200 UL CertificatePDF 160KB
ESA EW200 ATEX DeclarationPDF 36KB
