eM58ta/emc58ta

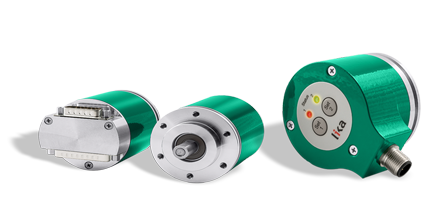

Programmable Multi-Turn Absolute Encoder, Analogue Output, Diagnostic LEDs, Push-Buttons

Fully programmable high performance multi-turn absolute encoder with analogue output. Built in diagnostic LEDs and Teach-In / Datum push buttons. Constructed from a robust corrosive resistant 6082 aluminium alloy 58mm diameter body, with a stainless steel shaft. Uses magnetic sensing offering a maximum resolution of up to 12 Bit, with up to 14 Bit Turns. Offers programmable scaling factor, teach-in function and SSI parameters.

  • Fully Programmable, With Analogue Output
  • Diagnostic LEDs, Teach Push-Buttons
  • Max Resolution 12 Bit / 14 Bit Turns
  • Magnetic Sensing, 58mm Body Diameter
  • Max Solid Shaft ∅12mm, or Blind Hollow Bore ∅15mm

Technical
Downloads
Linked Products
Sensing MethodMagnetic
Housing Diameter58mm
Maximum Resolution12 Bit Resolution / 14 Bit Turns
Output Circuit0-5V
0-10V
-5 to 5V
-10 to 10V
4-20mA
0-20mA
0-24mA
Supply Voltage13 - 30VDC
Shaft DesignSolid
Blind Hollow Bore
Max Shaft Diameter12mm Solid Shaft
15mm Blind Hollow Bore
Electrical ConnectionCable
M12 Connector
Operating Temperature-25oC - +85oC
Maximum Rotational Speed12,000RPM
Maximum Enclosure RatingIP67
OptionsCable Length
Connector
Shaft Diameter
