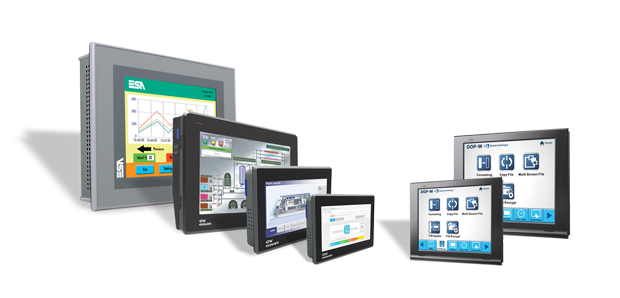

touch panels

Web panels & HMIs, android, linux, windows embedded, cloud integration, ip65, IP69K, stainless steel, wide temperature range

Founded in 1971 in Taiwan, Delta first began manufacturing switch mode power suppliers. Today the company has become a leading global manufacturer in the field of industrial automation, power electronics and energy management. Since the launch of its first Electrical Drives products in 1995, Delta now offers a complete range of automation products. Dedication to quality, reliability and ongoing investment in R&D, has resulted in Delta becoming renowned as an innovative leader in the industrial automation field. With 54 worldwide research facilities located in Taiwan, China, Thailand, Japan, USA and Europe, Delta employ 7500 R&D engineers and hold over 4900 registered patents.

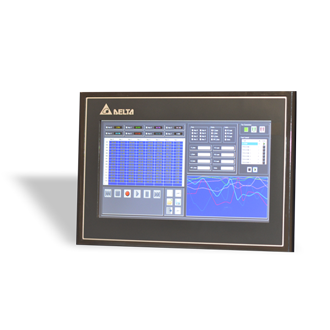

DOP-100

Advanced Industrial HMI

The Delta DOP-100 Series adopts the latest Cortex-A8 high speed processor and 65K colour LCD display panel with high brightness and contrast. The DOP-100 supports multiple network functions, including FTP, email, VNC remote monitoring and NTP, meeting the needs for Cloud applications and smart manufacturing. This range offers a narrow frame and wide screen design. It is equipped with multiple COM and Ethernet ports. Screen sizes include 4.3", 7" and 10.1", with range offering multilingual support.

  • Cortex-A8 800MHz
  • 4.3", 7" & 10.1" Widescreen
  • TFT 65K Colours
  • Cloud Integration

Technical
Downloads
Linked Products
Display Size4.3"
7"
10.1"
Display TypeTFT
Resolution480 x 272 (4.3")
800 x 480 (7")
1024 x 600 (10.1")
Display Colours65K
Backlight Brightness (cd/m2)400 (4.3")
450 (7" & 10.1")
ProcessorCortex-A8 800MHz
RAM512MB
ROM256MB
Interface1x Ethernet (10/100 Mbps)
1x RS232/485
1x RS422/485 (4.3")
2x RS422/485 (7" & 10.1")
Multilingual SupportYes
BuzzerYes
Power Supply24VDC
Protection Rating ButtonIP65
Operating Temperature0 to +50oC
CatalogueDelta DOP-100 CataloguePDF 2.6MB
.
Delta Automation Products Overview BrochurePDF 14.4MB
.
ManualDelta DOP-100 Manuals & GuidesVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060302&typeID=1&downloadID=DOP-100&title=DOP-100&dataType=1;8;3;9;4;10;5;6;&check=1&hl=en-US
SoftwareSoftware ToolsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060302&typeID=1&downloadID=DOP-100&title=DOP-100&dataType=1;8;3;9;4;10;5;6;&check=1&hl=en-US
DOP-100 Selection ToolZIP 68MBhttp://www.deltaww.com/Products/PluginWebUserControl/downloadCenterCounter.aspx?DID=18249&DocPath=1&hl=en-US
Dimensions2D and 3D CAD DrawingsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060302&typeID=1&downloadID=DOP-100&title=DOP-100&dataType=1;8;3;9;4;10;5;6;&check=1&hl=en-US
CertificationDOP-100 EC Declaration Of ConformityPDF 476KB
.
DOP-100 UL CertificatePDF 603KB
.
