Linear actuators

compact design, comprehensive range, high IP rating, long life, different materials & surface treatments

During the early 1990s a Danish company required a compact inline actuator, however as a suitable product was not available on the market, a new design was developed. This new design was nominated for several design prizes, and based on that Concens was formed. From the very start the goal of Concens was to design and manufacture powerful & compact inline actutors. Concens is driven by strong values of commitment, versatility and flexibility. Their aim to be at the forefront of developments within the field of linear motion, in an ever changing market, by offering a combination of design, size and functionality to meet customers’ requirements. Concens has focused on offering compact, well-designed inline electric actuators for use in applications where size, appearance and strength are crucial. Successful applications sectors include medical, rehab, industrial automation, marine and building automation. Concens solutions include actuators, controllers, battery powered solutions, handsets, together with a range of programming tools.

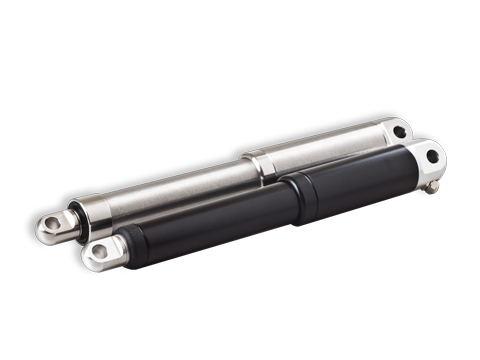

Compact In-line Linear Actuator

The con35 inline linear actuator from Concens offers a sleek compact design, ideal where space if of a premium, powerful actuator offering up to 2200N, available in powdered coated carbon steeel or ASIS316 stainless steel, duty rating of 10%, high IP rating, options include clevis ends and hall effect sensor feedback.

  • Compact 35mm Diameter Body
  • 12VDC or 24VDC motor
  • High IP Rating
  • Stainless Steel AISI316 Optional

Linked Products
Rated Force120N - 2200N
Rated Speed33mm/s - 3mm/s
Gear Ratio5, 14, 19, 27, 51, 71
Duty Cycle10% (2mins/18mins)
IP RatingIP66
Harsh Environment (not 5:1)
Maximum Standard Stroke750mm (1000N)
(longer lengths available on special request)
Motor Supply12VDC/3.6A
MaterialPowder Coated Carbon Steel
AISI316 Stainless Steel
Bracket MaterialPolyamide
AISI316 Stainless Steel
Operating Temperature-5ºC to +70ºC
-40˚C to +70˚C (Eskimo version)
CatalogueCon35 DatasheetPDF 1.3MB
Con35 Mounting Brackets FlierPDF 158KB
Concens Corporate ProfilePDF 2.6MB
General InformationMounting RecommendationsPDF 146KB
Actuator Enquiry FormPDF 619KB
Actuator Configuration GuidePDF 192KB
Actuator Vocabulary GuidePDF 125KB
Hall Sensor DatasheetPDF 967KB
Actuator Cable SpecificationPDF 671KB
DimensionsCadenas CAD Configurator
Con35 Mounting Brackets DrawingPDF 235KB
CertificationsIEC/EN/UL60601-1 CertificatePDF 207KB
Declaration Of ConformityPDF 601KB
