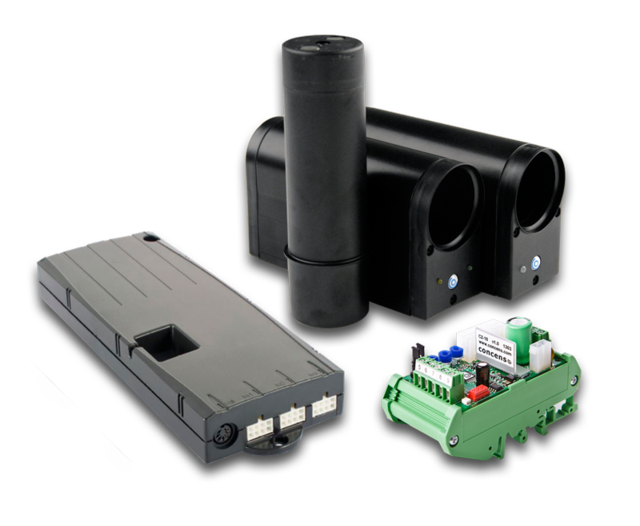

During the early 1990s a Danish company required a compact inline actuator, however as a suitable product was not available on the market, a new design was developed. This new design was nominated for several design prizes, and based on that Concens was formed. From the very start the goal of Concens was to design and manufacture powerful & compact inline actutors. Concens is driven by strong values of commitment, versatility and flexibility. Their aim to be at the forefront of developments within the field of linear motion, in an ever changing market, by offering a combination of design, size and functionality to meet customers’ requirements. Concens has focused on offering compact, well-designed inline electric actuators for use in applications where size, appearance and strength are crucial. Successful applications sectors include medical, rehab, industrial automation, marine and building automation. Concens solutions include actuators, controllers, battery powered solutions, handsets, together with a range of programming tools.

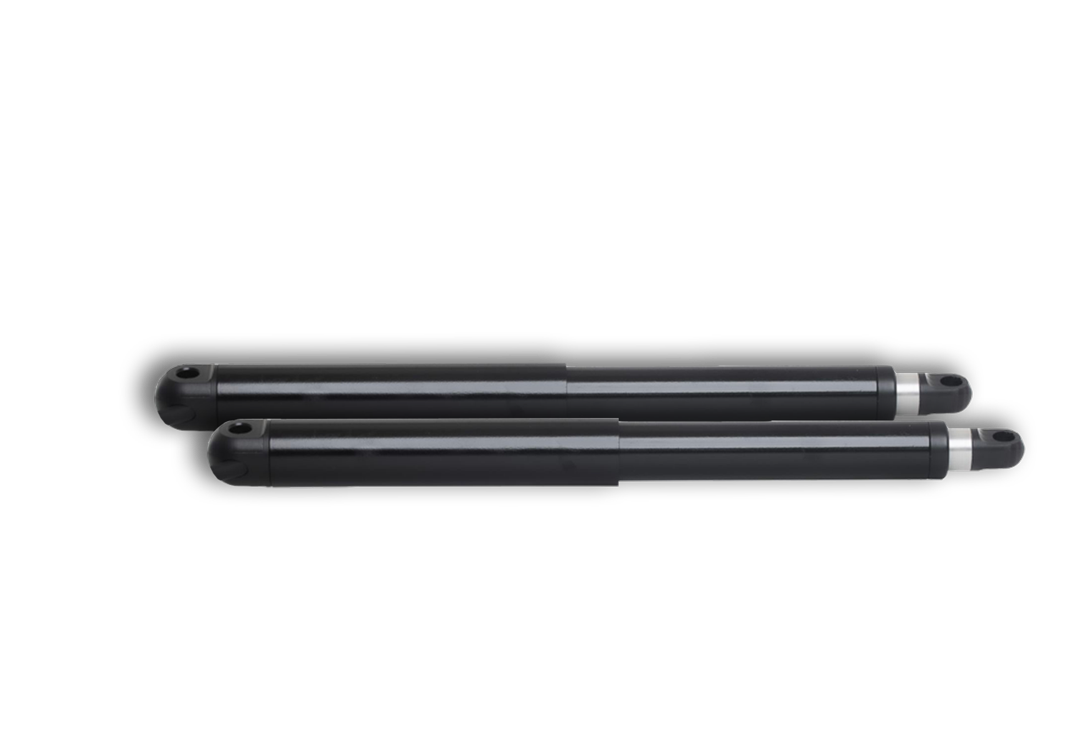

con25

Compact In-line Linear Actuator

The con25 inline linear actuator from Concens offers a sleek compact design, ideal where space if of a premium, powerful actuator offering up to 370N, available in powdered coated aluminium main body, unpainted aluminium piston rod, duty rating of 10%, options include clevis ends and hall effect sensor feedback.

  • Compact 25mm Diameter Body
  • 12VDC or 24VDC motor
  • Aluminium Construction
  • Hall Sensor Option

Technical
Downloads
Linked Products
Rated Force110N - 370N
Rated Speed5mm/s - 1.5mm/s
Gear Ratio25, 66, 110
Duty Cycle10% (2mins/18mins)
IP RatingIP66
Maximum Standard Stroke250mm
Motor Supply12VDC/0.7A
24VDC/0.4A
MaterialAluminium
Bracket MaterialPolyamide (standard)
Aluminium (on request)
Operating Temperature-20ºC to +70ºC
CatalogueCon25 DatasheetPDF 1.3MB
.
Concens Corporate ProfilePDF 2.6MB
.
General InformationMounting RecommendationsPDF 146KB
.
Actuator Enquiry FormPDF 619KB
.
Actuator Configuration GuidePDF 192KB
.
Actuator Vocabulary GuidePDF 125KB
.
Hall Sensor DatasheetPDF 967KB
.
Actuator Cable SpecificationPDF 671KB
.
RMA FormPDF 349KB
.
DimensionsCadenas CAD Configuratorhttp://concens.partcommunity.com/3d-cad-models/actuators-concens?info=concens%2Factuators
CertificationsCE Declaration Of ConformityPDF 207KB
.
