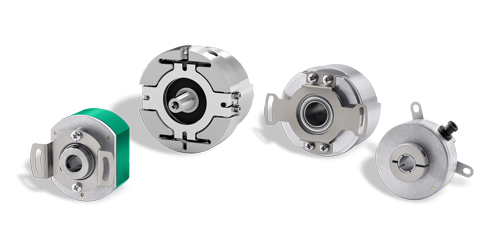

Motor feedback encoders

incremental, asynchronous and asynchronous motors, hollow bore or tapered solid shaft, digital and sin/cos commutation signals, wide temperature range

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

CB62

Gearless Motor Feedback Encoder

Designed for use with Gearless Motors, the CB62 encoder offers optical sensing with a resolution of 2048ppr Sin/Cos signal. In addition to the incremental signal, an absolute track monitors rotor position. Constructed from a robust corrosive resistant 6082 aluminium alloy 58mm diameter body, with a stainless steel shaft, in a tapered solid shaft. An expanding front flange enables easy installation

  • 58mm Body Diameter
  • Optical Sensing
  • Resolution 2048ppr
  • Absolute Track For Rotor Position
  • 1:10mm Taper Shaft

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter58mm
Maximum Resolution2048ppr
Output Circuit1Vpp
Supply Voltage5VDC
Shaft DesignTapered Solid Shaft
Max Shaft Diameter1:10mm Tapered Solid Shaft
Electrical ConnectionPCB Connector
Operating Temperature-20oC - +100oC
Maximum Rotational Speed12000rpm
Maximum Enclosure RatingIP40
OptionsExtension Cable Length
CatalogueCB62 DatasheetPDF 169KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualCB62 ManualPDF 3.5MB
.
CB62 Installation GuidePDF 1.2MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
