Linear controls

current limiting, positioning, synchronising, AC, DC or battery powered

During the early 1990s a Danish company required a compact inline actuator, however as a suitable product was not available on the market, a new design was developed. This new design was nominated for several design prizes, and based on that Concens was formed. From the very start the goal of Concens was to design and manufacture powerful & compact inline actutors. Concens is driven by strong values of commitment, versatility and flexibility. Their aim to be at the forefront of developments within the field of linear motion, in an ever changing market, by offering a combination of design, size and functionality to meet customers’ requirements. Concens has focused on offering compact, well-designed inline electric actuators for use in applications where size, appearance and strength are crucial. Successful applications sectors include medical, rehab, industrial automation, marine and building automation. Concens solutions include actuators, controllers, battery powered solutions, handsets, together with a range of programming tools.

c3-con-0w

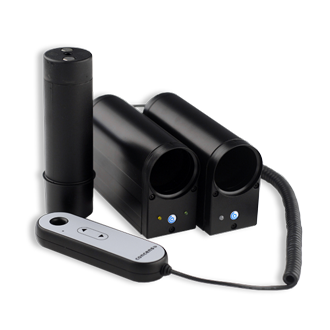

Single Axis Battery Powered Controller

The C3-CON-0W is a battery powered controller specifically designed for mobile applications. This controller can be used with a single actuator, together with a wired handset and a NiMH battery. The battery is inserted into the housing, which is self aligned and held in place using powerful magnets. The battery is charged using a standalone battery charger, powered from AC mains. The C2-CON-0W monitors the battery level and informs the user when the battery requires charging, by means of a buzzer.

  • Battery Powered
  • User Friendly Handset
  • Stop/Start, Forward/Reverse
  • Low Battery Detection
  • Current Limiting Protection

Technical
Downloads
Linked Products
Battery Voltage24VDC
Rated Current7A Continuous
15A (Starting Current)
Current Limiting Range0.5 - 3A
2A - 12A
Low Battery DetectionYes
Acceleration Ramp0.2s / 0.4s
Deceleration Ramp0.2s / 0.4s
Protection RatingIP50 (Standard)
IP65 (Upgrade)
Operating Temperature-0ºC to +60ºC
OptionsHandset
Mounting Clip
IP65 Upgrade
CatalogueConcens C3-CON-0W DatasheetPDF 413KB
.
Concens Corporate ProfilePDF 2.6MB
.
ManualConcens C3-CON-0W User GuidePDF 413KB
.
General InformationConcens RMA FormPDF 349KB
.
CertificateConcens C3-CON-0W IEC/EN/UL60601 CertificatePDF 207KB
.
Concens C3-Charger IEC/EN/UL60601 CertificatePDF 65KB
.
