high-level PLCS

hot swappable, redundancy, fast execution speeds, motion control, wide range of modules, expansion racks, high speed communications, multiple programming languages

Founded in 1971 in Taiwan, Delta first began manufacturing switch mode power suppliers. Today the company has become a leading global manufacturer in the field of industrial automation, power electronics and energy management. Since the launch of its first Electrical Drives products in 1995, Delta now offers a complete range of automation products. Dedication to quality, reliability and ongoing investment in R&D, has resulted in Delta becoming renowned as an innovative leader in the industrial automation field. With 54 worldwide research facilities located in Taiwan, China, Thailand, Japan, USA and Europe, Delta employ 7500 R&D engineers and hold over 4900 registered patents.

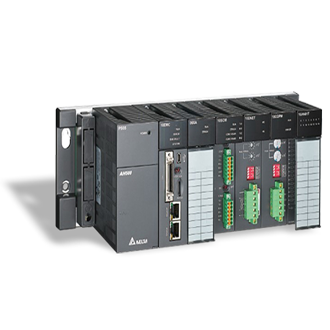

AH500

High Performance Hot-Swappable PLC

Delta's AH500 High Performance PLC range has been designed for those more demanding applications. Combining modular construction, advanced functionality and a high level software platform, the AH500 is ideal for complex and large scale process control applications. Other key features include "hot-swapping" of modules and redundancy capabilities. Offering a program capacity up to 1M steps, instruction execution speeds of 0.02µS, and up to 7 expansion racks.

  • Hot Swappable
  • Redundancy Option
  • Fast Execution Speeds
  • Motion Control Functionality
  • Supports Multiple Fieldbuses

Technical
Downloads
Linked Products
Power Supply100-240VAC
24VDC
Local I/O PointsUp To 4352
Program CapacityUp To 1M Steps
Expansion CapacityUp To 7 Additional Racks
Output TypeNPN (Transistor)
PNP (Transistor)
Relay
Differential
CommunicationRS232
RS422
RS485
USB
EtherNet
Modbus
Modbus TCP
EtherNet/IP
EtherCAT
PositioningUp To 32 Axes (EtherCAT)
Hot SwappableYes
Redundancy OptionYes
CatalogueDelta AH500 CataloguePDF 5.0MB
.
Delta Automation Products Overview BrochurePDF 14.4MB
.
Delta AH500 Product Selection ToolZIP 854KB
.
ManualDelta AH500 Programming ManualVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=AH+Series&title=AH+Series&dataType=3;&check=1&hl=en-US
Delta AH500 Installation InstructionsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=AH+Series&title=AH+Series&dataType=5;&check=1&hl=en-US
Delta PLC Cable GuidePDF 10.9MB
.
SoftwareDelta PLC Software & Communication ToolsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=AH+Series&title=AH+Series&dataType=8;11;&check=1&hl=en-US
DimensionsDelta PLC 2D and 3D CAD DrawingsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=AH+Series&title=AH+Series&dataType=9;&check=1&hl=en-US
CertificationsDelta PLC CE, UL and CUL CertificatesVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=AH+Series&title=AH+Series&dataType=10;&check=1&hl=en-US
